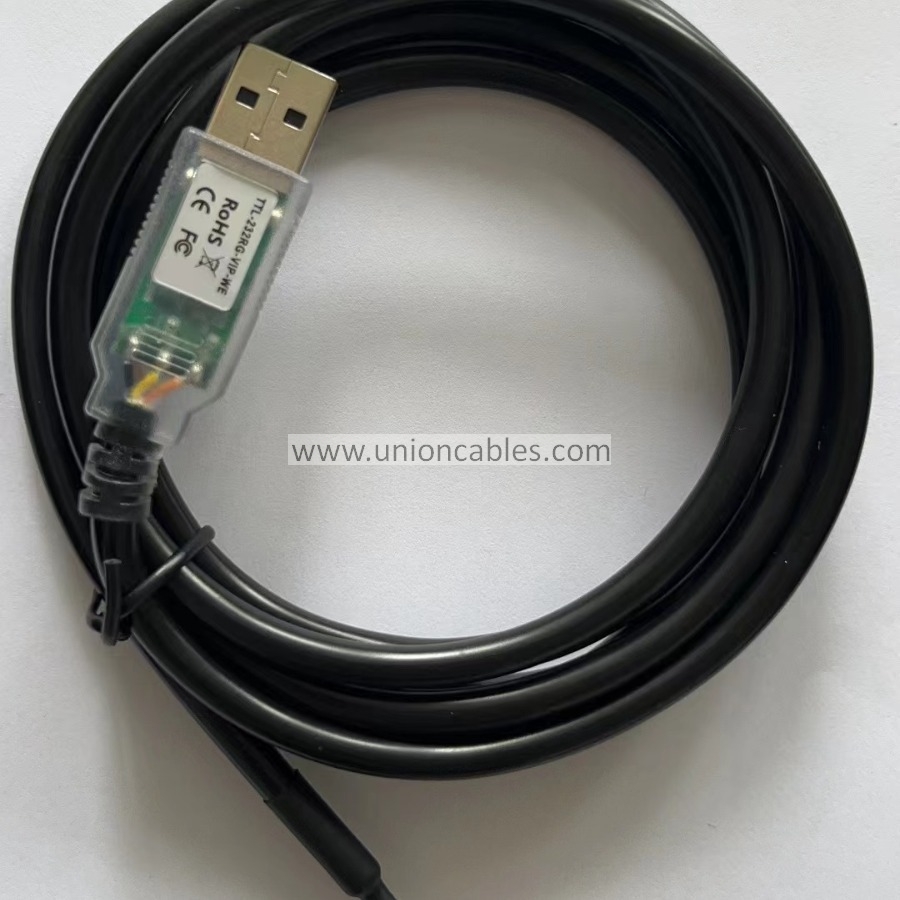

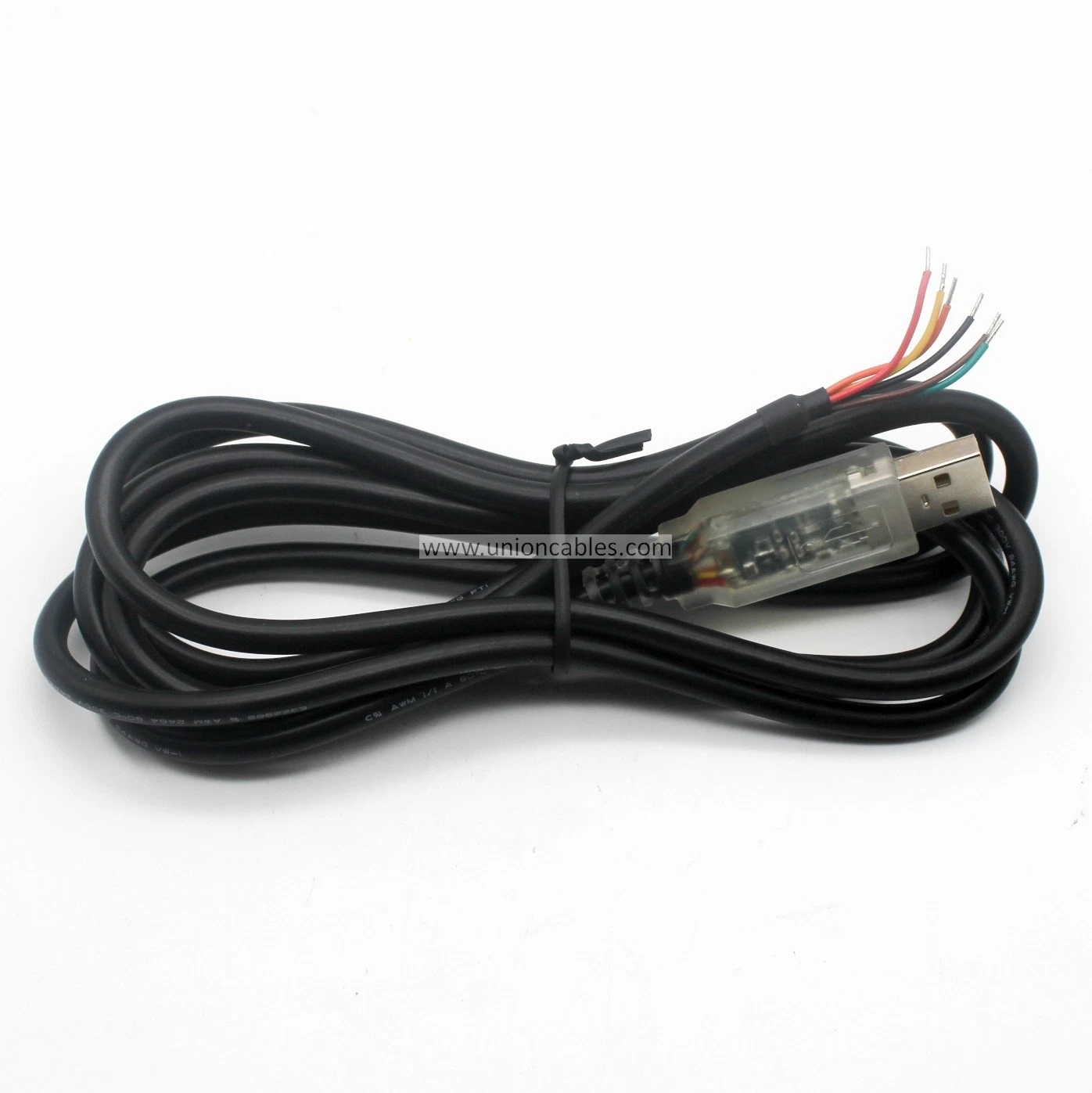

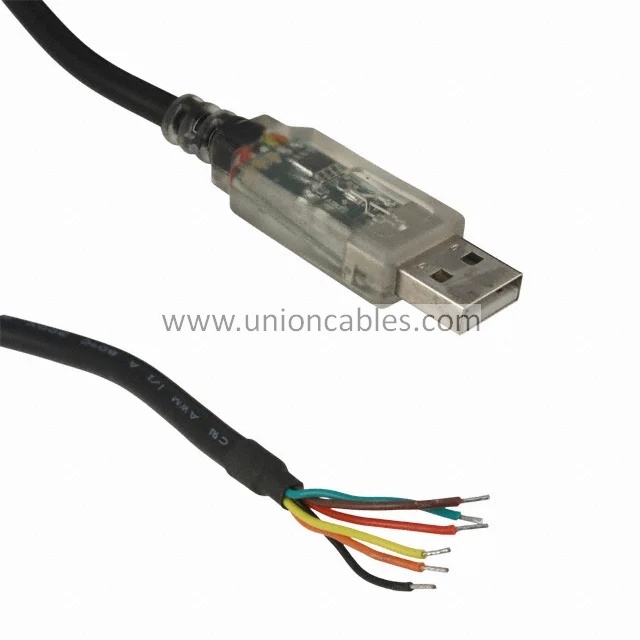

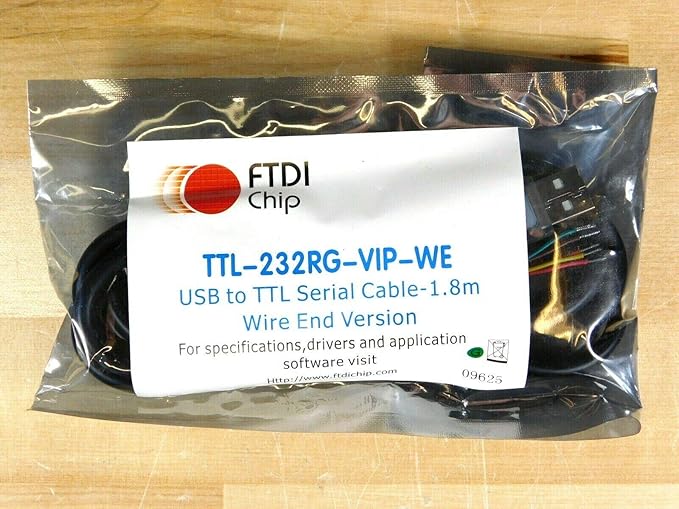

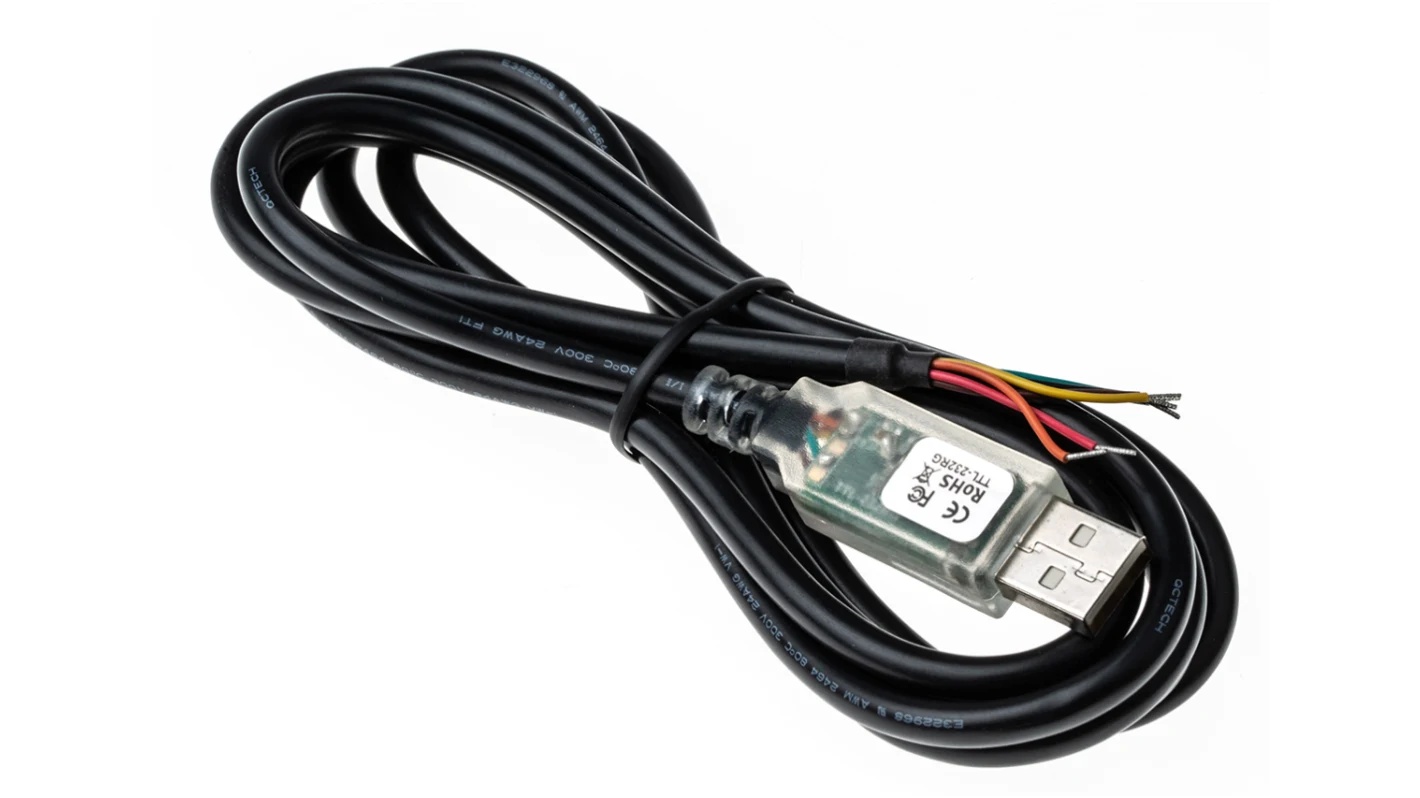

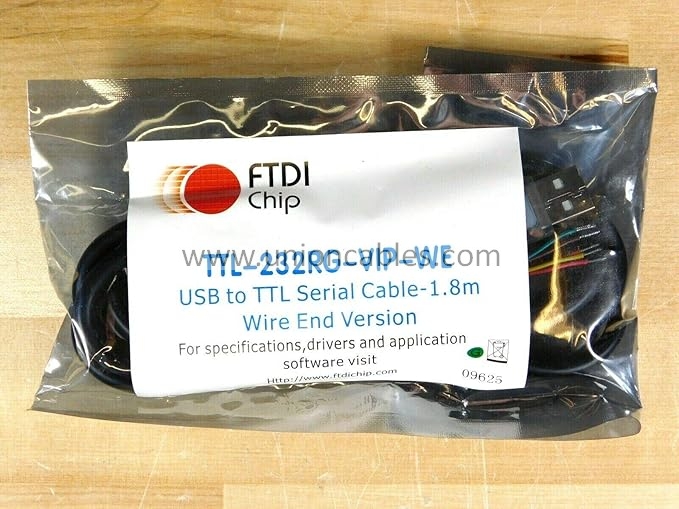

TTL-232RG-VIP-WE ,USB to TTL cable w/ Embd Electronics, LEDs, Specifd Logic Levels, WireEnd

Name: TTL-232RG-VIP-WE ,USB to TTL cable w/ Embd Electronics, LEDs, Specifd Logic Levels, WireEnd
Brand: Shenzhen Union Electronics Co.,Ltd
Availability: InStock
Rating: 5 (1 reviews)

Part No: TTL-232RG-VIP-WE
USB to TTL cable w/ Embd Electronics, LEDs, Specifd Logic Levels, WireEnd
USB to UART cable features voltage reference input for setting UART signalling levels.

DS_TTL-232RG_CABLESDownload

INQUIRY

PDF Format

Description

Part No: TTL-232RG-VIP-WE

USB to TTL cable w/ Embd Electronics, LEDs, Specifd Logic Levels, WireEnd

USB to UART cable features voltage reference input for setting UART signalling levels.

Data Rates: 3MBaud
USB Speed: Full Speed (12Mbps)
Interfaces: UART
USB Connector: Type A
End Connector: Wire ended
Cable Length: 1.8m

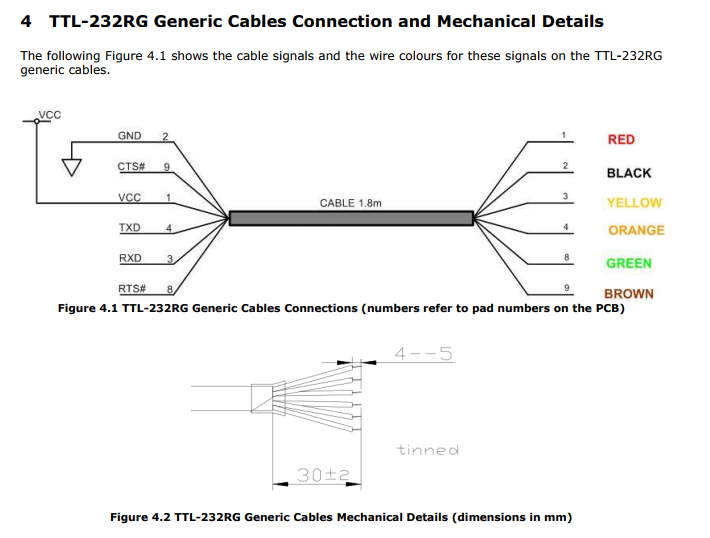

Cable Details: 6 core, 5mm UL2464 24 AWG
Packages: N/A
Channels: 1
I/O Voltage: 1.8V to 5V
USB Class: FTDI Drivers
Virtual Com Port: Yes
Max Power Output: -
FTDI Internal IC: FT232R
Operating Temperature: -40°C to +85°C
