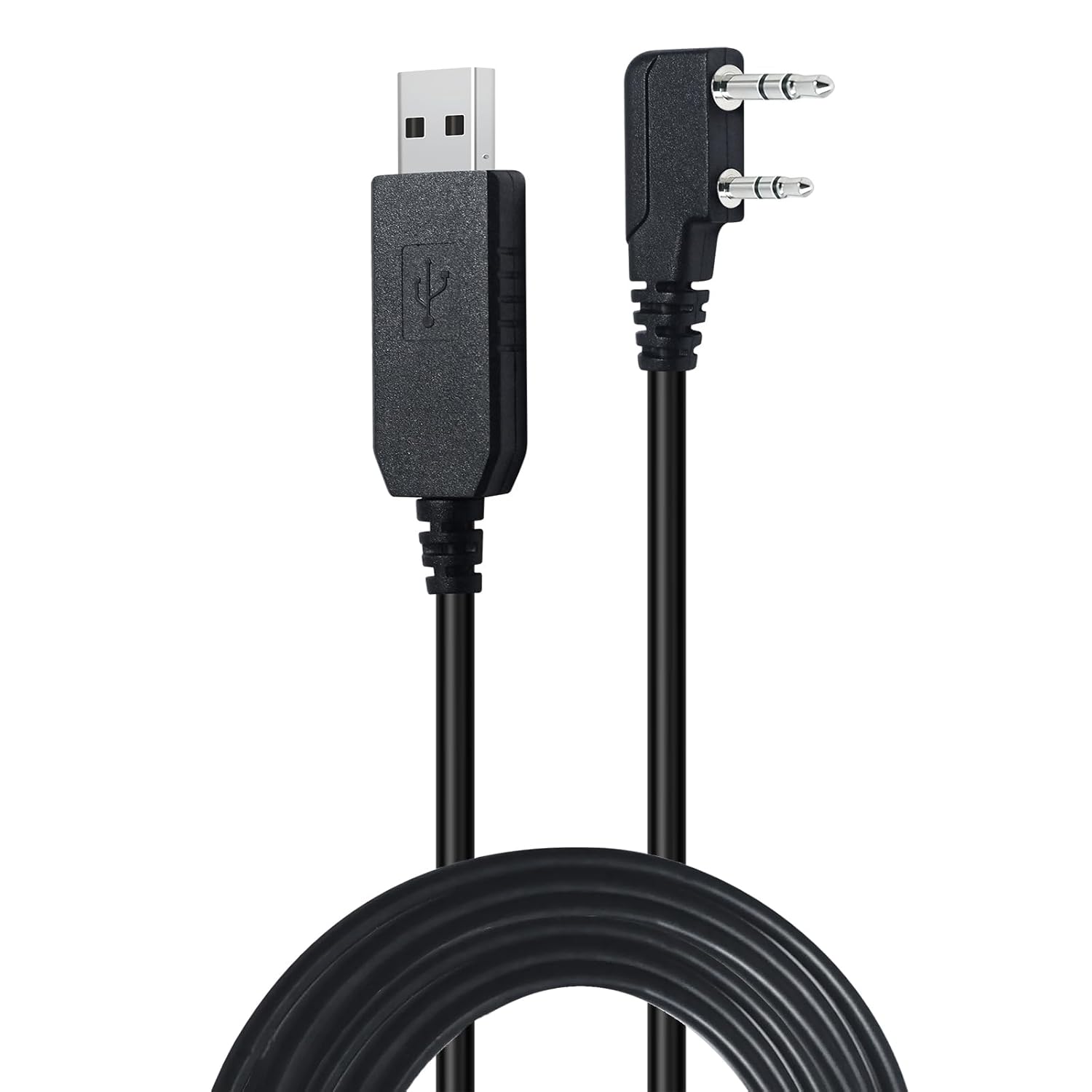

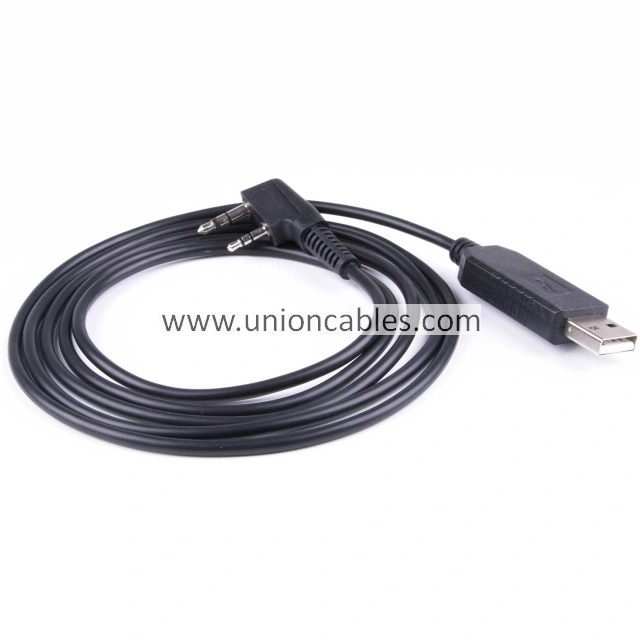

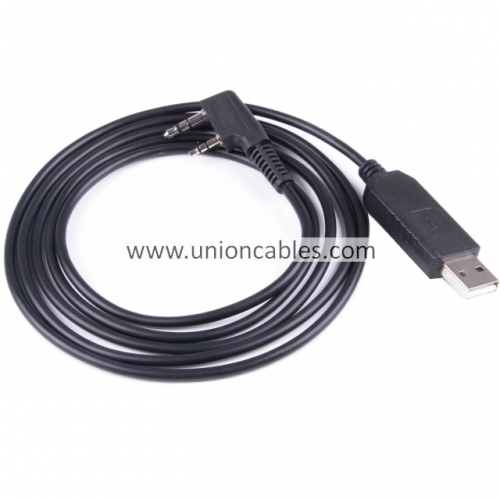

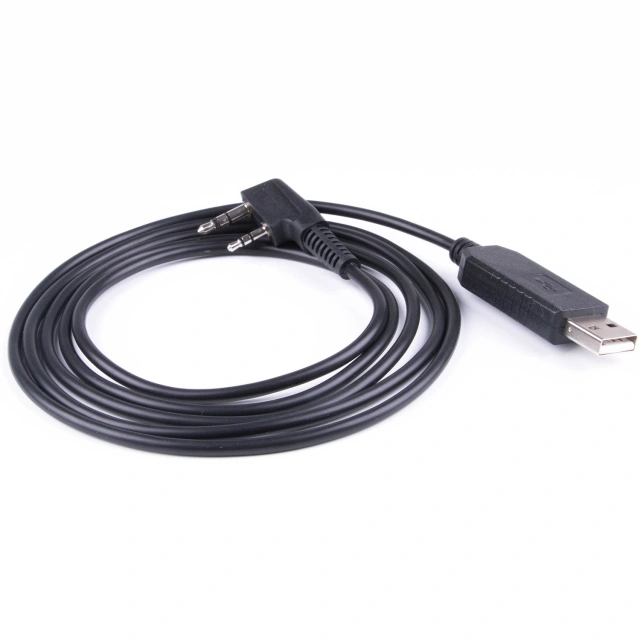

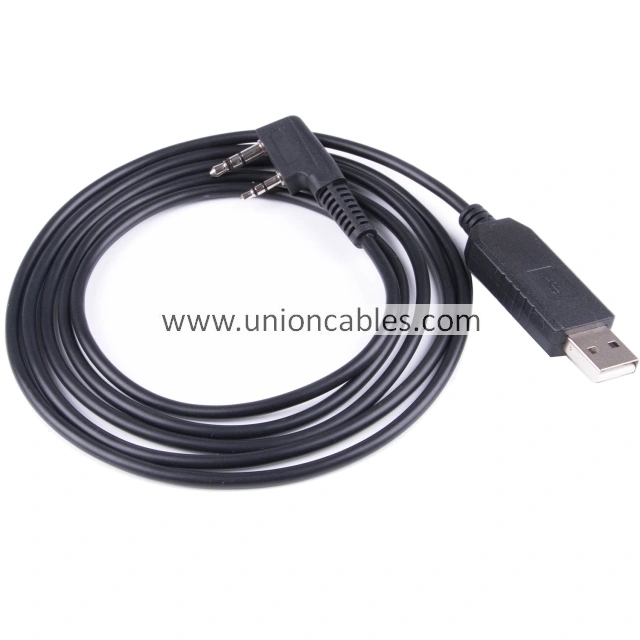

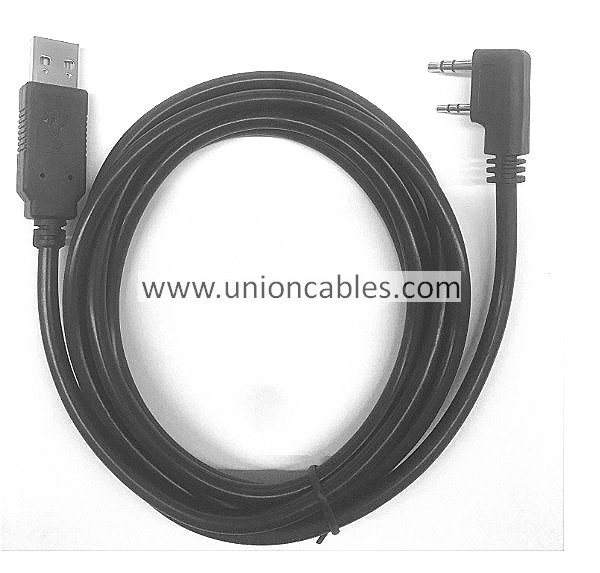

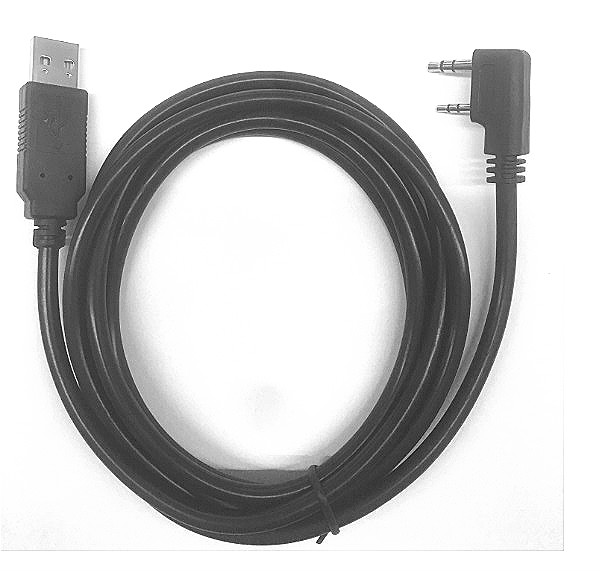

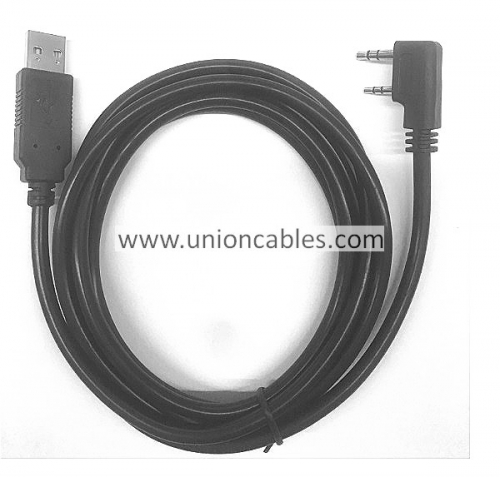

FTDI USB Programming Cable for Baofeng UV-5R/5RA/5R Plus/5RE, UV3R Plus, BF-888S BF-F8HP BF-F9V2+ GT-5TP

Name: FTDI USB Programming Cable for Baofeng UV-5R/5RA/5R Plus/5RE, UV3R Plus, BF-888S BF-F8HP BF-F9V2+ GT-5TP
Brand: Shenzhen Union Electronics Co.,Ltd
Availability: InStock
Rating: 5 (1 reviews)

No.USN230707A
usb to dual stereo jack plug ftdi programming cable usb ttl serial programming cable application: Baofeng UV-5R/5RA/5R Plus/5RE, UV3R Plus, BF-888S BF-F8HP BF-F9V2+ GT-5TP

INQUIRY

PDF Format

Description

FTDI USB Programming Cable for Baofeng UV-5R/5RA/5R Plus/5RE, UV3R Plus, BF-888S BF-F8HP BF-F9V2+ GT-5TP
Programming Cable for BAOFENG UV-5R/5RA/5R
Plus/5RE, UV3R Plus, BF-888S BF-F8HP BF-F9V2+ GT-5TP DP
win8, win10, android, mac, usb ttl 5v adapter cable, baofeng radio program cable

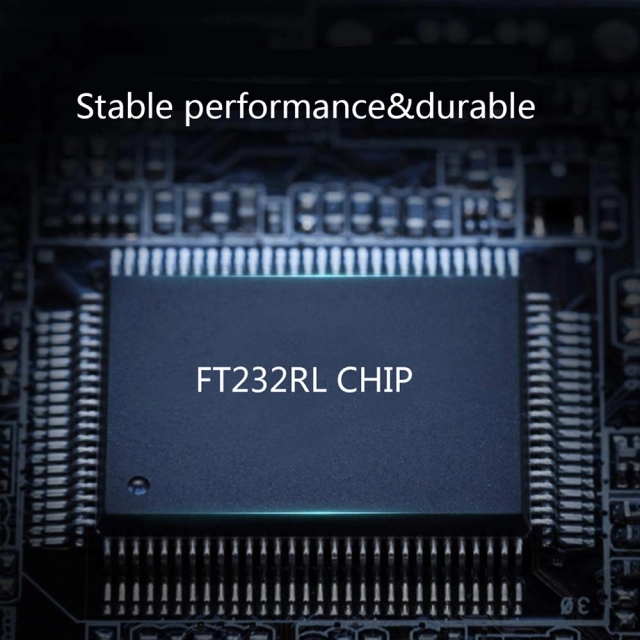

USB2.0 compliance FT232RL chip
USB TTL +5v for baofeng radio cable
For Baofeng intercom, interphone freshing cable
Integrated 1024 byte EEPROM for re-write, COM port ID, Vendor ID, etc
Support 300 ~ 1M baud rate
On-board pinout: TX, RX, CTS, RTS, VCC,GND

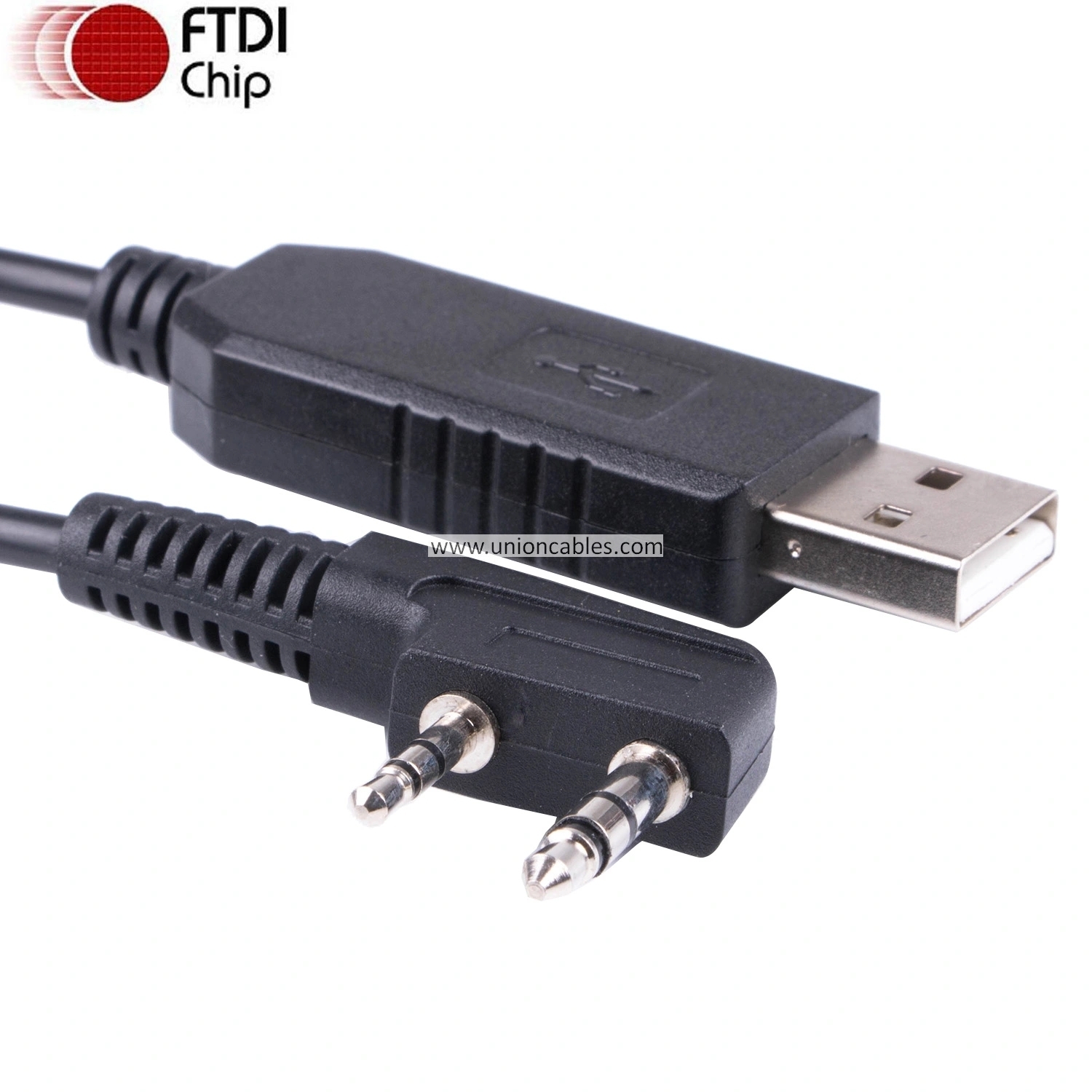

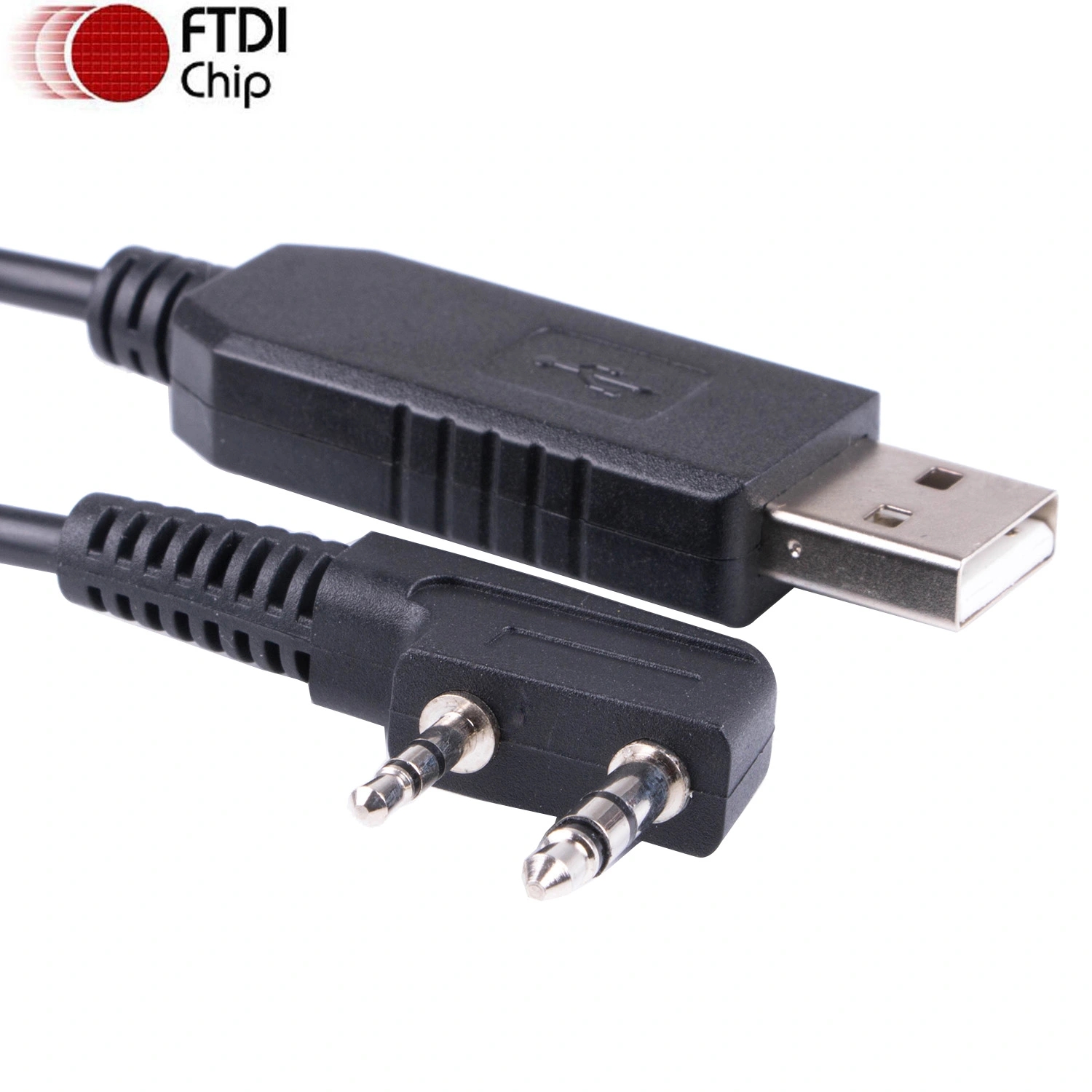

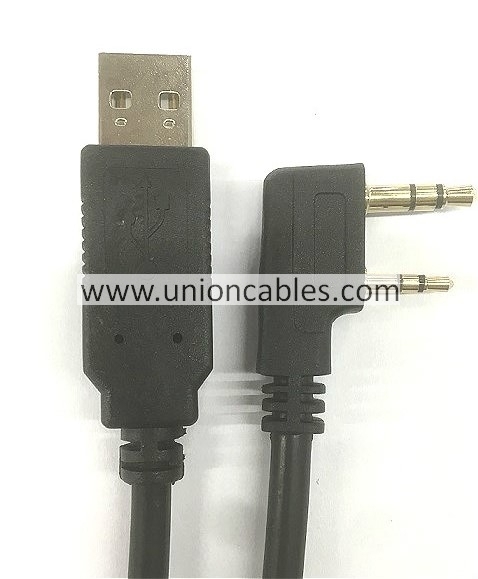

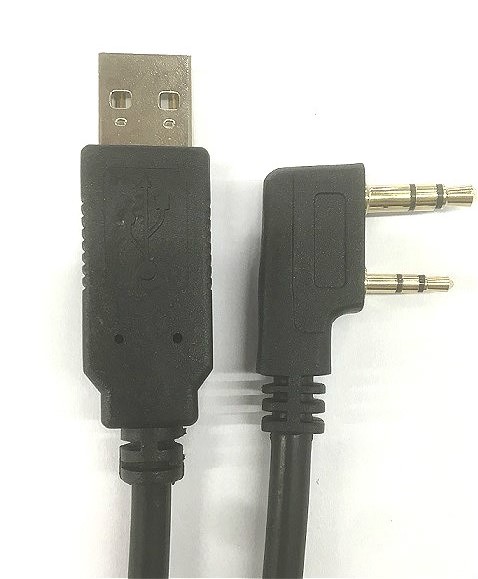

Standard pinout: 2.5mm sleeve - GND, 2.5mm Ring - RX, 3.5mm Sleeve - TX Cable length: 1.5mtr Cable spec: 28AWG, 6 core, Bare copper, PVC jacket, OD=3.8mm.
